AD2800SPLED 10’1 X 5’11 Plant Trailer – 3500kg

The AD2800SPLED Plant Trailer is a premium 3.5-ton braked plant trailer engineered for transporting construction machinery, compact plant equipment, and heavy-duty tools with confidence. Manufactured in the United Kingdom from high-quality galvanised steel, this professional-grade trailer combines exceptional durability, high payload capacity, and advanced safety features to meet the demands of contractors, plant hire companies, landscapers, and construction professionals.

Designed to perform in demanding working environments, the AD2800SPLED features a robust fully galvanised steel chassis that provides outstanding resistance to corrosion and long-term structural strength. With an impressive 2,740 kg payload capacity, it is ideally suited for transporting mini excavators, scissor lifts, compact rollers, dumpers, skid steers, and other heavy machinery.

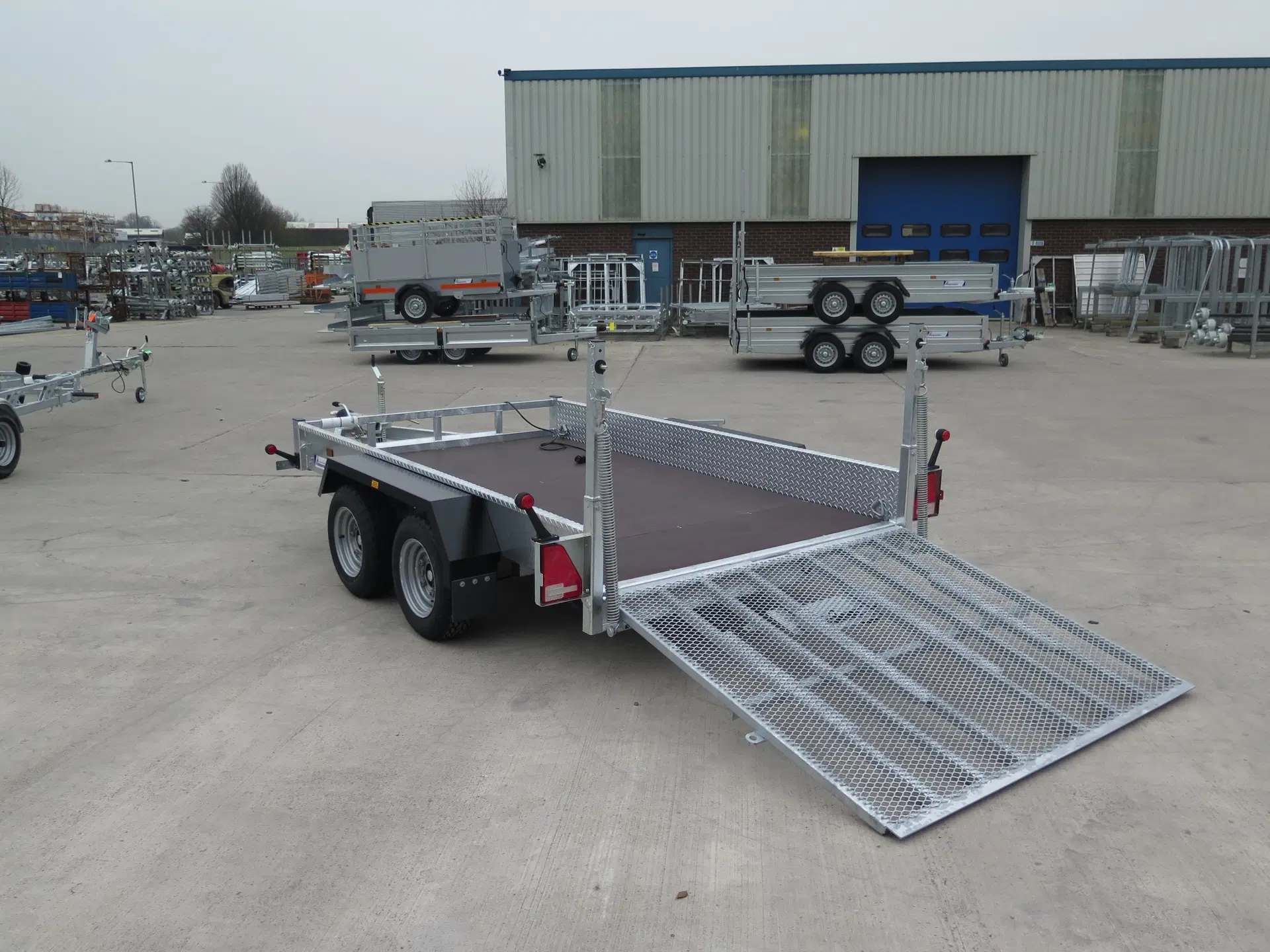

A spring-assisted full-width ramp tail with a 17° loading angle allows machinery to be loaded and unloaded safely and efficiently, while the low bed height of 456 mm further improves accessibility for low-clearance equipment. The durable non-slip trailer floor provides enhanced traction during loading, helping to improve operator safety in all weather conditions.

Built for dependable performance, the trailer is equipped with sealed-for-life wheel bearings, AL-KO braking system, heavy-duty commercial tyres, and an adjustable hitch for greater towing flexibility. Together, these premium components deliver excellent towing stability, reduced maintenance requirements, and reliable performance across a wide range of applications.

Key Features

• Heavy-duty 3.5-ton braked plant trailer
• Manufactured in the United Kingdom
• Fully galvanised steel chassis for corrosion resistance
• High payload capacity of 2,740 kg

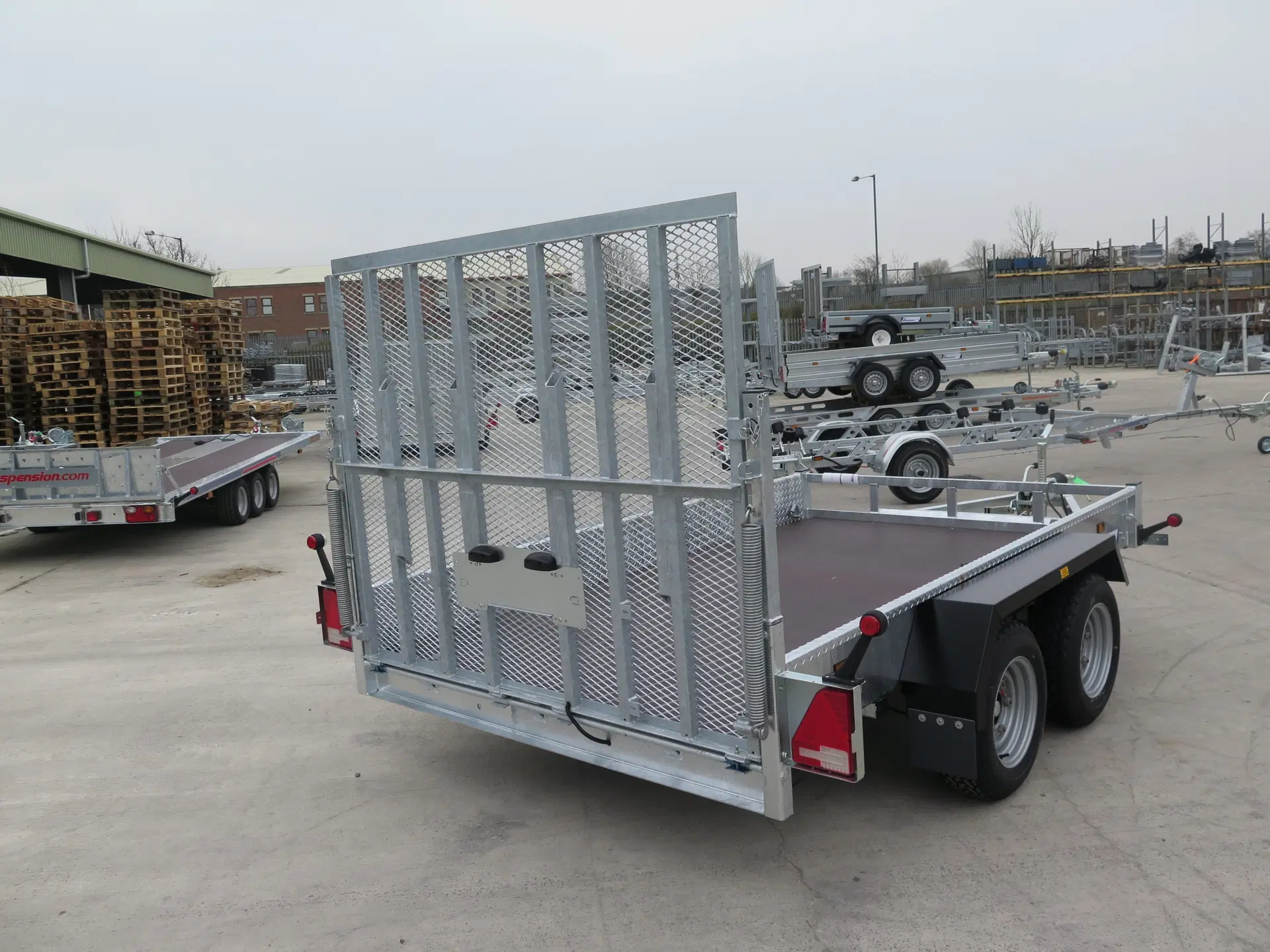

• Spring-assisted full-width loading ramp
• 17° shallow loading angle for safe equipment access
• Low 456 mm bed height
• Durable non-slip loading floor
• Adjustable hitch for towing flexibility
• AL-KO braking system
• Sealed-for-life wheel bearings
• Ideal for mini diggers, scissor lifts, dumpers, compact machinery, and plant equipment

Specifications

• Product Type: Braked Plant Trailer
• Internal Bed Size: 3.05 × 1.80 m (10’1″ × 5’11”)
• Gross Vehicle Weight (GVW): 3,500 kg
• Unladen Weight: 760 kg
• Payload Capacity: 2,740 kg
• Construction: Fully Galvanised Steel
• Bed Height: 456 mm
• Standard Ramp Angle: 17°
• Ramp Dimensions: 1500 × 1790 mm
• Tyre Size: 185/70 R13C
• Wheel Stud Pattern (PCD): 165.1 mm
• Wheel Studding: 5 × M16
• Braking System: AL-KO
• Bearings: Sealed for Life
• Coupling: Adjustable Hitch
• Country of Manufacture: United Kingdom

The AD2800SPLED Plant Trailer delivers outstanding strength, reliability, and ease of use for professional equipment transport. Its heavy-duty galvanized construction, high payload capacity, low loading height, and premium running gear make it the ideal solution for safely transporting plant machinery and construction equipment on even the most demanding jobs.
